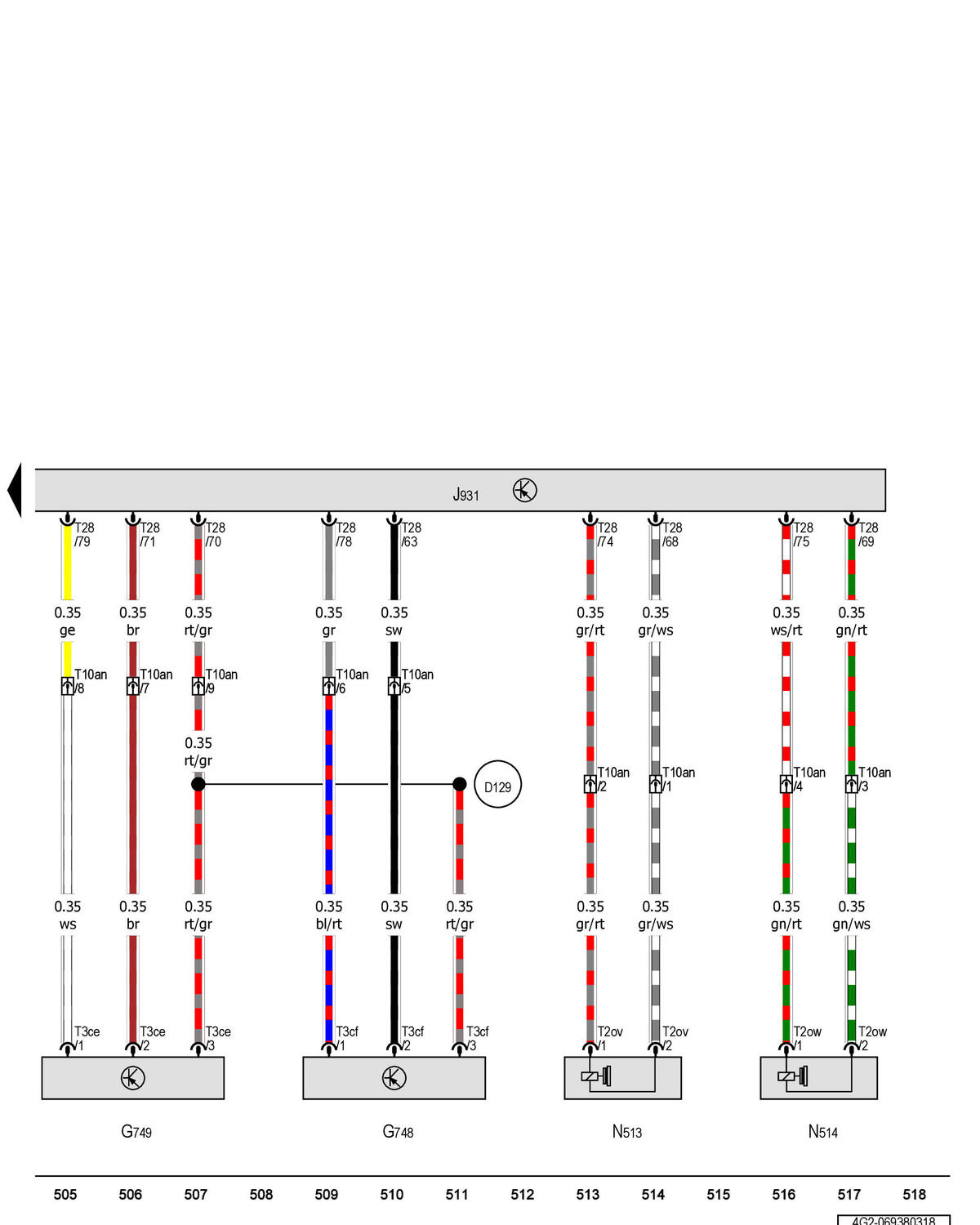

Assembly Mount Sensor 1, Assembly Mount Sensor 2, Assembly Mount Control Module, Assembly Mount Actuator 1: Notes

GWW4G2-069380318Courtesy of AUDI OF AMERICA, LLC
