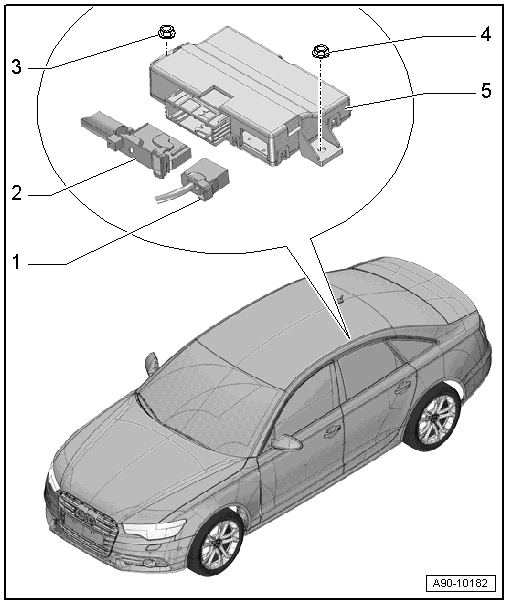

Overview - Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. Fiber Optic Cable Connector
   • Seal with :VAS6223/9
2. Connector
   • For the Data Bus on Board Diagnostic Interface -J533-
3. Nut
   • 2 Nm
4. Nut
   • 2 Nm
5. Data Bus on Board Diagnostic Interface -J533-
   • Removing and installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
