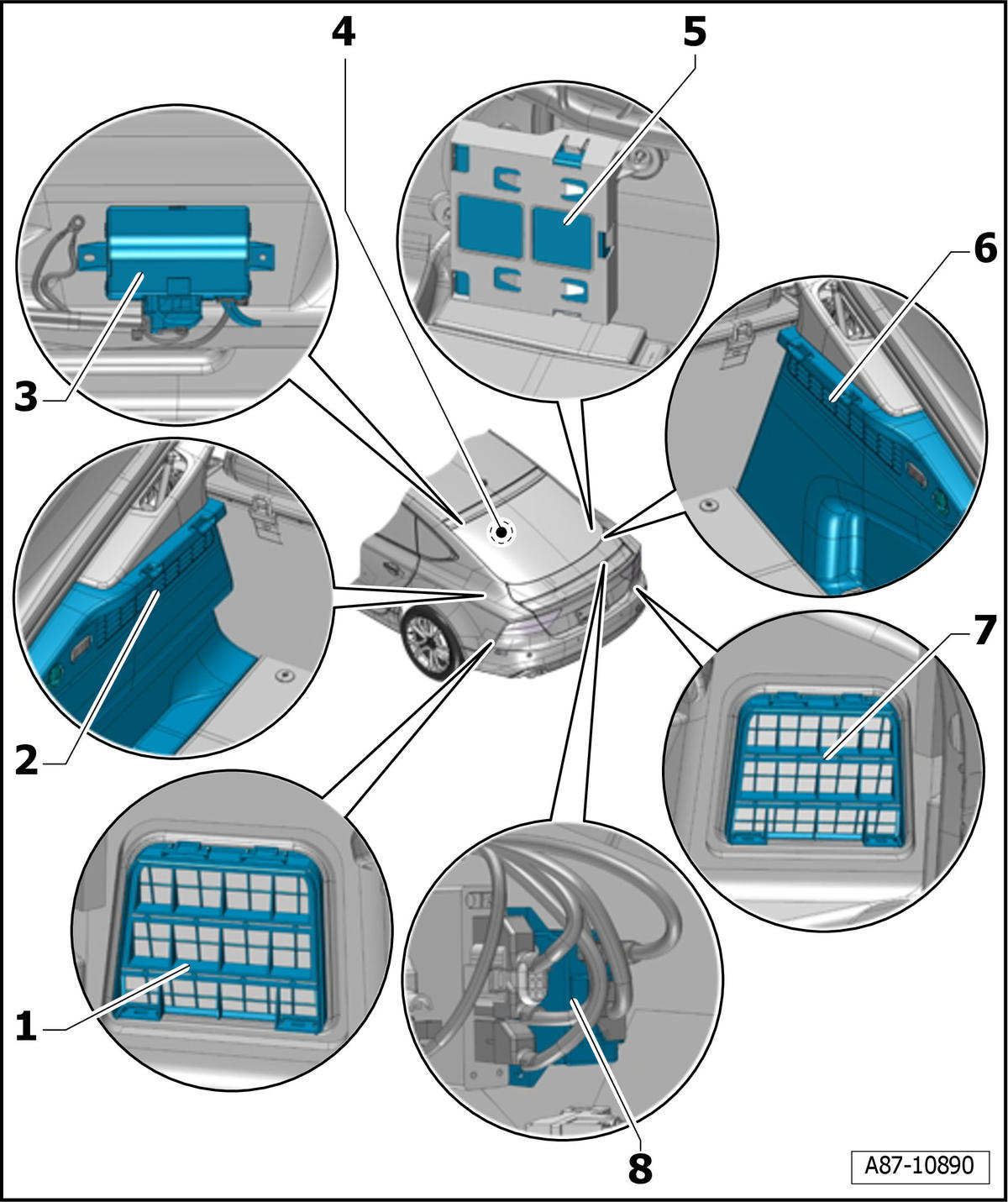

Component Location Overview - Rear Components Outside Of Passenger Compartment
- Left Forced Air Extraction
- Different version. Refer to the Parts information.
- Checking. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
- Removing and Installing. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
- Ventilation Slot in the Left Luggage Compartment
- Various versions and locations. Shown in the illustration on the Audi A7
- Checking. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
- Data Bus On Board Diagnostic Interface -J533-
- Via the Data Bus On Board Diagnostic Interface -J533-, information is exchanged between the Climatronic Control Module -J255- control head and other control modules (for example with the Comfort System Central Control Module -J393-, the Vehicle Electrical System Control Module -J519- etc.). Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function and Refer to the Appropriate Wiring Diagram.
- Removing and installing. Refer to CONTROL MODULES .
- Rear Window Defogger -Z1-
- The request for the rear window defogging is sent from the Climatronic Control Module -J255- control head via the Data Bus to the Comfort System Central Control Module -J393-. The activation occurs via the Comfort System Central Control Module -J393-. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function and Refer to the Appropriate Wiring Diagram.
- Notes on function of the rear window defogger. Refer to REAR WINDOW DEFOGGER .
- Rear window, removing and installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- The activation of various vehicle systems (for example the Rear Window Defogger -Z1- etc.), such as the evaluation of the signals for other components (for example signals from the Humidity Sensor -G355-) occurs via the Comfort System Central Control Module -J393- (or the Vehicle Electrical System Control Module -J519-, depending on the vehicle). Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Ventilation Slot in the Right Luggage Compartment
- Various versions and locations. Shown in the illustration on the Audi A7
- Checking. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
- Right Forced Air Extraction
- Different version. Refer to the Parts information.
- Checking. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
- Removing and Installing. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
- Parking Heater Radio Receiver -R64-
- Depending on the vehicle equipment level
- For vehicles with a parking heater
- As soon as an activation signal is detected by the hand-held transmitter of the auxiliary heater radio receiver/remote control, the Auxiliary Heater Control Module -J364- queries the Climatronic Control Module -J255- control head. The Climatronic Control Module -J255- then decides whether parking heater operation is necessary to reach the set temperatures or parking ventilation operation is sufficient.NOTE:
Note the correct allocation of the A/C control head, the Climatronic Control Module -J255- to the hand-held transmitter and to the Parking Heater Radio Receiver -R64-. There are different versions of the hand-held transmitter and the Parking Heater Radio Receiver -R64- on a Climatronic Control Module -J255- with a part number through index "AH" (for example, recognizable on the button AC ) and with a part number from index "AJ" (for example, recognizable on the button A/C ).
