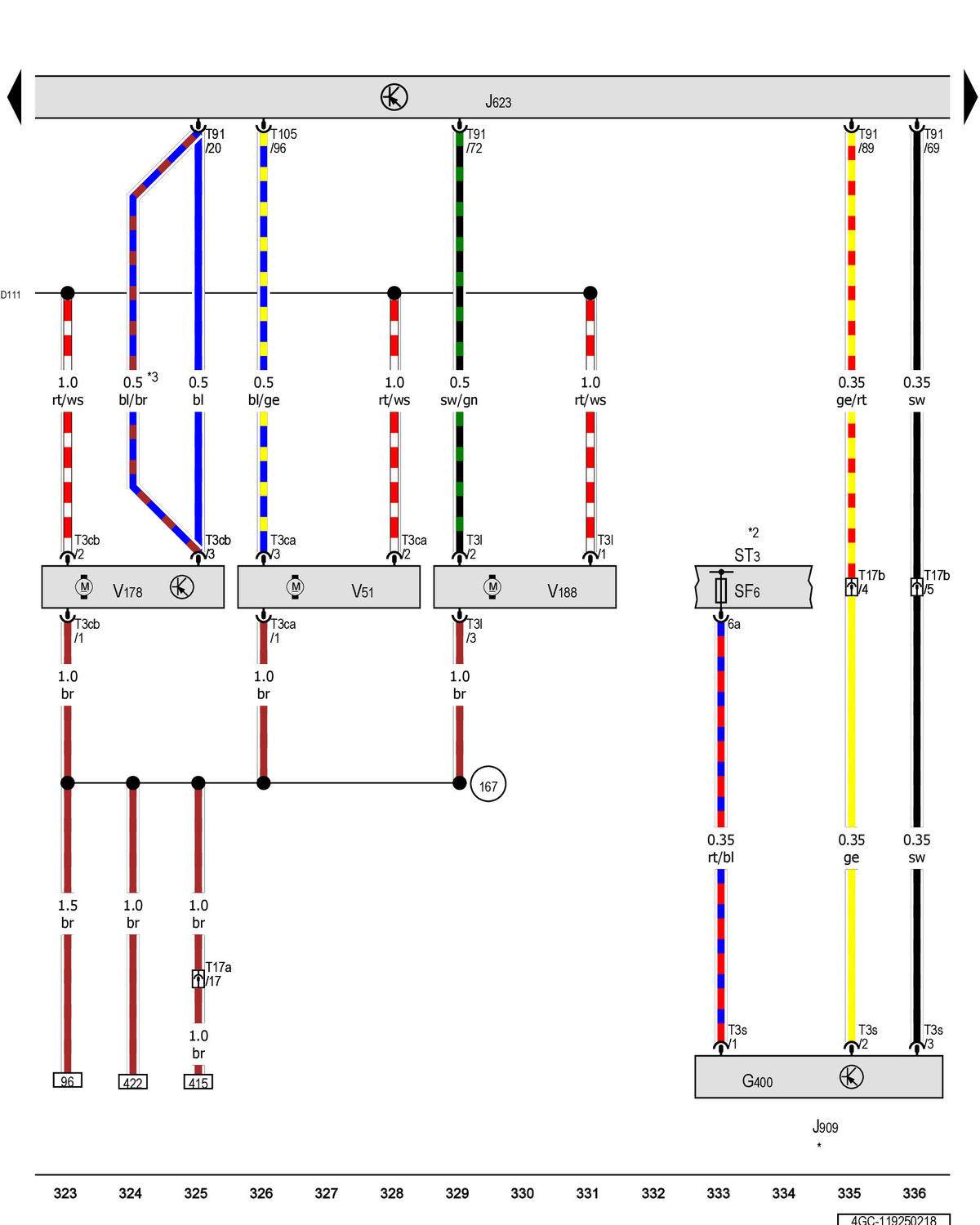

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, After-Run Coolant Pump, Engine Coolant Circulation Pump 2, Charge Air Cooling Pump: Notes

GWW4GC-119250218Courtesy of AUDI OF AMERICA, LLC
