Coolant Level, Checking and Filling: Notes
-- The vehicle must level.
-- Check the coolant level in the reservoir when the engine is cold.
-- If coolant level is too low, fill with coolant mixture.

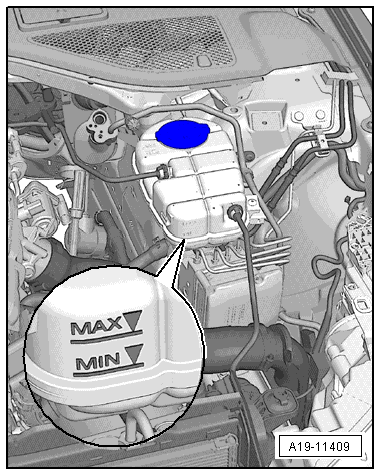

- Delivery inspection: Coolant level above the "min. marking" -arrow-.
- Inspection service: Coolant level above the "min. marking" -arrow-.
- Small quantities of coolant can be added. Use Coolant System Filler Unit :VAS 6096 if larger quantities of coolant are needed when filling.
- Consult the owner's manual for the Coolant System Filler Unit :VAS 6096 .
NOTE:
Determine cause of fluid loss, which cannot be attributed to normal use and repair.
