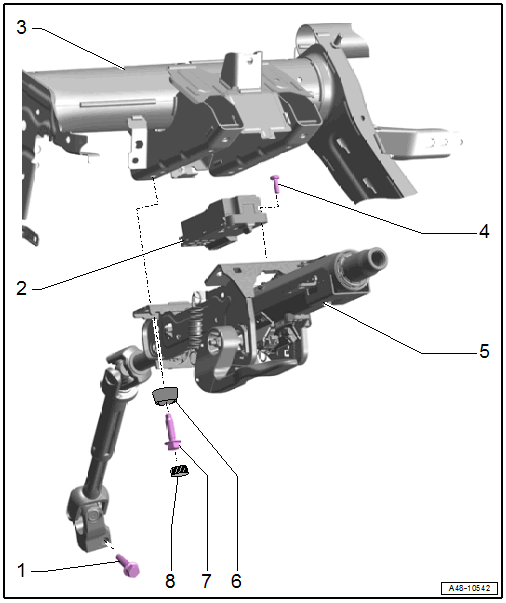

Overview - Steering Column
NOTE:
Always replace corroded bolts/nuts.
- Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole (for example, using a thread tap) before installing the new bolt.
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
- Instrument Panel Central Tube
- Bolt
- 6 Nm
- Steering Column
- There are different versions.
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- The steering column must be engaged on the instrument panel central tube mounting bracket when installing (assembly aid).
- Anti-Theft Protection Lower Section
- Replace after removing
- Dependent on the version.
- Bolt
- 20 Nm
- Replace after removing
- Anti-Theft Protection Upper Section
- Dependent on the version.
- Replace after removing
