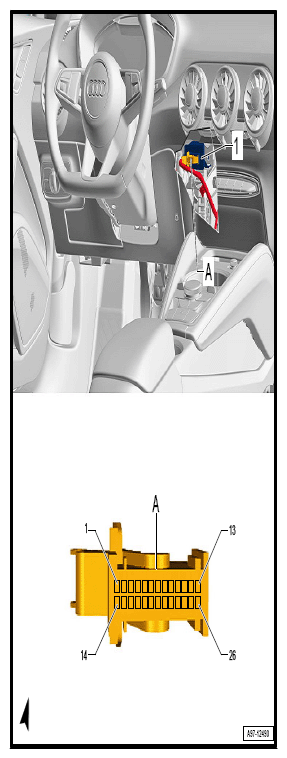

Headlamp Range Control Module -J431- Connector Views LHD
26-PIN CONNECTOR -T26B- (A)
| T26B (A) | Designation |
|---|---|
| 1 | |
| 2 | Extended System CAN-Bus High, to E135 CAN bus extended high connection (in engine compartment wiring harness) B108 CAN-Bus Extended High Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 3 | Extended System CAN-Bus Low, to E136 CAN bus extended low connection (in engine compartment wiring harness) B109 CAN-Bus Extended Low Connection 1 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 4 | CAN-Bus, to D178 High bus connection 2 (in engine compartment wiring harness) Front Left Headlamp MX1/Front Right Headlamp MX2, LED, Matrix-Beam |
| 5 | CAN-Bus, to D179 Low bus connection 2 (in engine compartment wiring harness) Front Left Headlamp MX1/Front Right Headlamp MX2, LED, Matrix-Beam |
| 6 | |
| 7 | Left Rear Level Control System Sensor G76 |
| 8 | Terminal 56, from D152 Positive connection 1 (56b) (in engine compartment wiring harness) Vehicle Electrical System Control Module J519 |
| 9 | |
| 10 | Left Rear Level Control System Sensor G76 |
| 11 | Left Rear Level Control System Sensor G76 |
| 12 | |
| 13 | |
| 14 | |
| 15 | Left Daytime Running Lamp and Parking Light Control Module J860 Left Headlamp Beam Adjustment Motor V48 |
| 16 | Right Daytime Running Lamp and Parking Light Control Module J861 Right Headlamp Beam Adjustment Motor V49 |
| 17 | Right Daytime Running Lamp and Parking Light Control Module J861 Right Headlamp Beam Adjustment Motor V49 |
| 18 | Right Daytime Running Lamp and Parking Light Control Module J861 Right Headlamp Beam Adjustment Motor V49 |
| 19 | Right Daytime Running Lamp and Parking Light Control Module J861 Right Headlamp Beam Adjustment Motor V49 |
| 20 | Left Daytime Running Lamp and Parking Light Control Module J860 Left Headlamp Beam Adjustment Motor V48 |
| 21 | Left Daytime Running Lamp and Parking Light Control Module J860 Left Headlamp Beam Adjustment Motor V48 |
| 22 | Left Daytime Running Lamp and Parking Light Control Module J860 Left Headlamp Beam Adjustment Motor V48 |
| 23 | Terminal 15, from D200 Positive connection 3 (15a) (in engine compartment wiring harness) Fuse Panel C SC |
| 24 | Terminal 31, to 131 Ground connection 2 (in engine compartment wiring harness) 132 Ground Connection 3 (in engine compartment wiring harness) 671 Ground Connection 1 (on left front long member) |
| 25 | |
| 26 |
