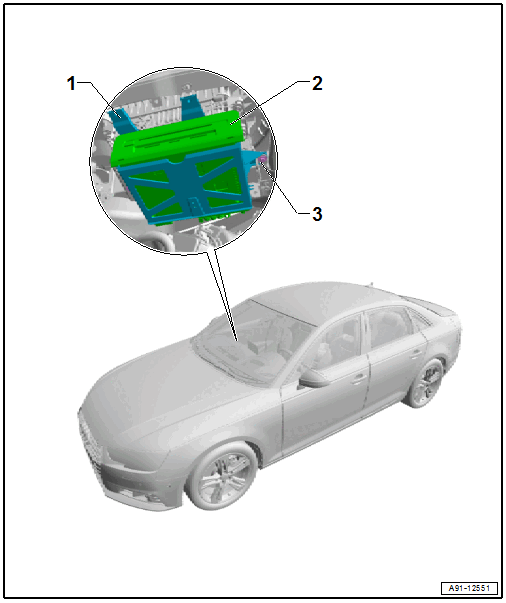

Component Location Overview - Navigation System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bracket
2. Bolt
   • 3 Nm
   • Quantity: 2
3. Information Electronics Control Module 1 -J794-
   • Connector assignment. Refer to the appropriate Wiring Diagram(s).
   • Removing and installing. Refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING .
