Rear Peripheral Camera -R246-, Removing And Installing, AVANT: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING / REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

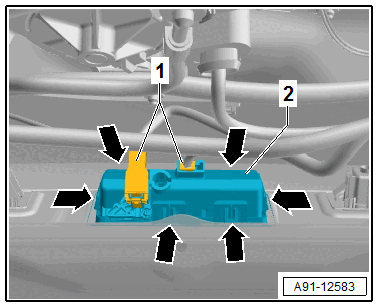

-- Release and disconnect the connectors -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers -arrows-.

-- Remove the handle button -2- from the rear lid.
