Subwoofer -R211-, Removing And Installing, AVANT: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor.

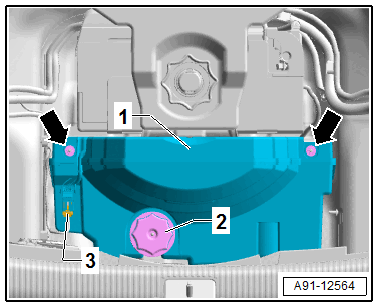

-- Release and disconnect the connector -3- from the Subwoofer -R211- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- from the Subwoofer -R211- -1-.

-- Remove the nuts -arrows- from the Subwoofer -R211- -1-.

-- Remove the Subwoofer -R211- -1- upward out of the spare tire well.
