6.2.2 Distance Regulation Control Module - J428- Retaining Plate, Removing and Installing, Version 1
Special tools and workshop equipment required
- Digital Caliper - VAS6335-
Removing
- Remove the distance regulation control module. Refer to 6.2.1 Distance Regulation Control Module - J428-, Removing and Installing .

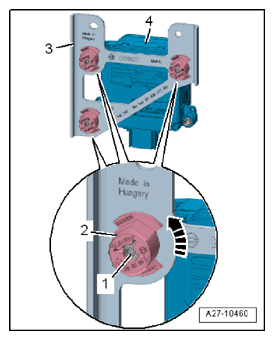

- Turn the quick release -2- counterclockwise in direction of -arrow-.
- Remove the quick release from the stud bolts -1-.
- Remove the retaining plate -3- from the Distance Regulation Control Module - J428- -4-.
Installing
Install in the reverse order of removal. Note the following:
NOTE:
- Replace the quick release.
- The stud bolts in the bracket are pre-set. If necessary, correct the setting.
- If the stud bolts were removed, then the clips on the distance regulation control module must be replaced. Refer to 6.2.6 Clip on Distance Regulation Control Module - J428-, Replacing, Version 1 .
- Place the control module on a soft and clean surface.
- Measure the dimension -a- at all stud bolts using the - VAS6335- and correct if necessary.
- Dimension -a- = 44.3 mm.

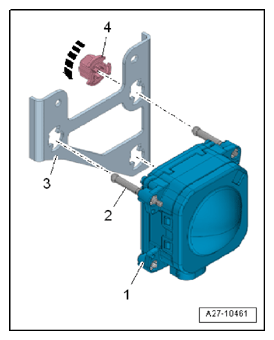

- Position the retaining plate -3- onto the distance regulation control module -1-.
- Carefully press the new quick release -4- onto the stud bolt -2-.
- Turn the quick release clockwise onto the retaining plate to the stop in direction of -arrow-.
