BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, RS3 THROUGH MY 2016: Installing
Install in the reverse order of removal while paying attention to the following:
NOTE:
If the same distance regulation control module is reinstalled the clips on the distance regulation control module must be replaced. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING, RS3 THROUGH MY 2016 .
-- Install the retaining plate with the stud bolt on the control module.
- The stud bolt must be aligned correctly to the clip.
-- Turn the stud bolt into the distance regulation control module up to the dimension -a-.

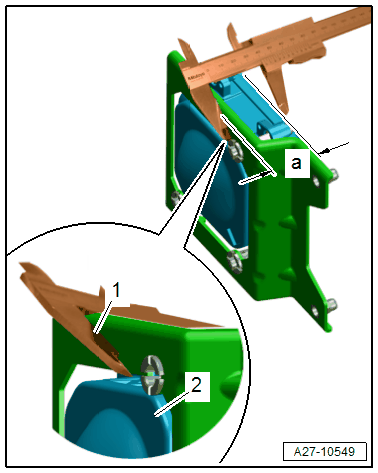

-- Measure the dimension -a- at all stud bolts using the digital caliper : VAS6335 and correct if necessary.
- Dimension -a- = 41.8 mm.
- Pay attention that the shank -1- on the caliper when measuring the radar eye -2- does not contact it.
