Front Display Front And Rear Cover, Removing And Installing: Removing
-- Bring the display into service position. Refer to 8-INCH FRONT DISPLAY SERVICE POSITION .
-- Remove the display with the kinematics:
- 6.5 inch. Refer to 6.5 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
- 8 inch. Refer to 8 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
First the Front Information Display Control Head -J685- is disconnected from the kinematics.
-- Follow the guidelines for ESD (electro static discharge). Refer to FRONT DISPLAY FRONT AND REAR COVER, REMOVING AND INSTALLING .

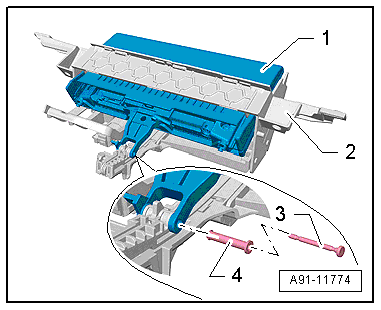

-- Remove the mounting pin -3- and the bearing sleeve -4- from the display support -1-.
-- Remove the display support -1- from the kinematics -2-.

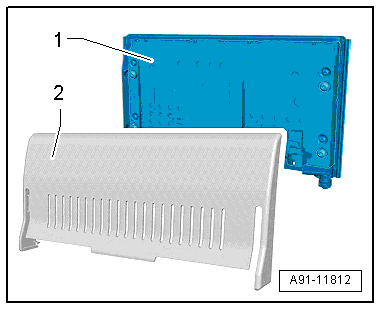

-- Unclip the rear cover -2- from the display support with display -1-.

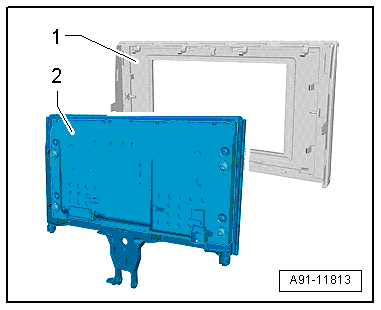

-- Unclip the front cover -1- from the display support with display -2-.
