Component Location Overview - Navigation System

Courtesy of AUDI OF AMERICA, LLC

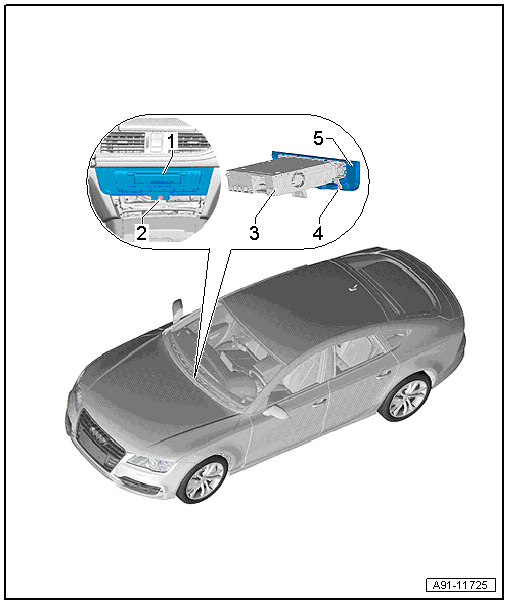

1. Information Electronics Control Module 1 -J794-
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
   • Connector Assignment, Navigation 7T2. Refer to NAVIGATION CONNECTOR ASSIGNMENT, 7T2 .
   • Connector Assignment, Navigation plus 7T6. Refer to the Appropriate Wiring Diagram.
   • Connector Assignment, Navigation plus 7UG. Refer to the Appropriate Wiring Diagram.
2. Bolt
   • 3 Nm
3. Information Electronics Control Module 1 -J794-
4. Bolt
   • 1 Nm
   • Quantity: 4
5. Trim
