Overview - Windshield Wiper System, Rain/Light Recognition Sensor

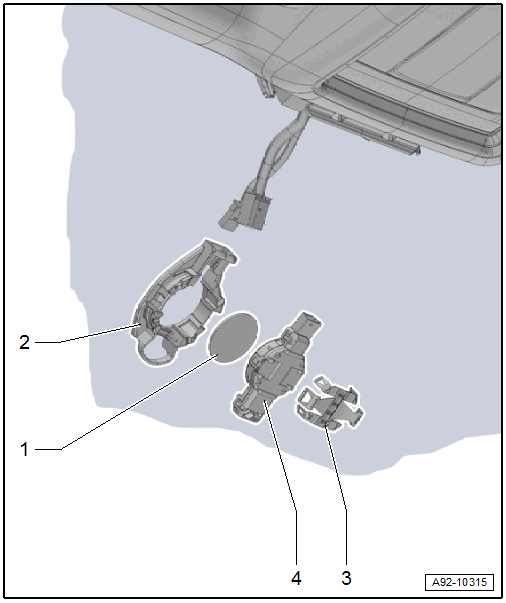

Fig 1: Exploded View of Windshield Wiper System (With Rain/Light Recognition Sensor)

Courtesy of AUDI OF AMERICA, LLC

1. Silicone Pad
   • There are different versions.
   • Replace after removing.
2. Retaining Plate
   • For the Rain/Light Recognition Sensor -G397-
   • Attached to the windshield
3. Clip
   • Replace after removing.
4. Rain/Light Recognition Sensor -G397-
   • There are different versions.
   • Removing and Installing. Refer to Rain/Light Recognition Sensor -G397-, REMOVING AND INSTALLING, VEHICLES WITH Humidity Sensor -G355- .
   • Replacing. Refer to Rain/Light Recognition Sensor -G397-, REPLACING, VEHICLES WITH Humidity Sensor -G355- .
