Seat/Steering Column Adjustment Control Module With Memory Function, MULTICONTOUR Seat

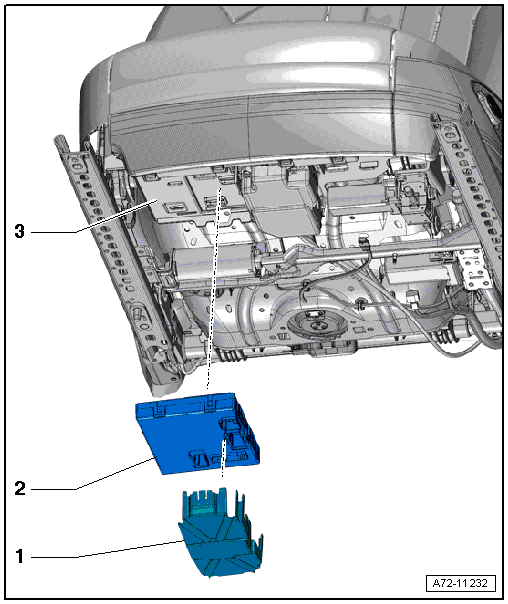

Fig 1: Exploded View Of Seat Pan, Front Seat Control Module (Multicontour Seat)

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • Installed depending on the version
   • Must engage audibly in the bracket
2. Memory Seat/Steering Column Adjustment Control Module -J136-
   • Vehicles with seat ventilation: Seat ventilation and left front seat heating integrated
   • Front passenger side: Front Passenger Memory Seat Control Module -J521-
   • Vehicles with seat ventilation: Seat ventilation and right front seat heating integrated
   • Removing and installing. Refer to SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE WITH MEMORY FUNCTION, REMOVING AND INSTALLING .
   • Press on it until it clicks into the bracket
3. Bracket
   • For front trim, compressor and multicontour seat control module
   • Removing and installing. Refer to FRONT SEAT TRIM BRACKET/COMPRESSOR/CONTROL MODULE, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
