Seat/Steering Column Adjustment Control Module With Memory Function, Removing And Installing: Removing
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the Engine/Transmission Holder - Seat Repair Fixture :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

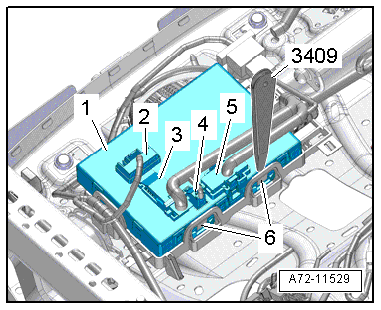

-- Disconnect the connectors -2 through 5- from the control module -1-.
NOTE:
The number of connectors may vary depending on equipment. The description shows the version with the most equipment possible.
-- Unclip the retainers -6- using the Trim Removal Wedge :3409 .

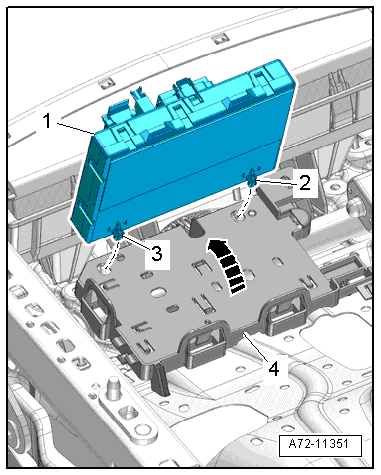

-- Carefully remove the control module -1- from the retainers -arrow-.
-- Disengage the hooks -2- and -3- on the bracket -4- and remove the control module.
