Bracket For Thermal Management Control Module - J1024- (And Subframe Mount Control Module -J931-), Removing

-- Switch off the ignition.

-- Remove the right front wheel housing liner. Refer to WHEEL HOUSING LINER . .

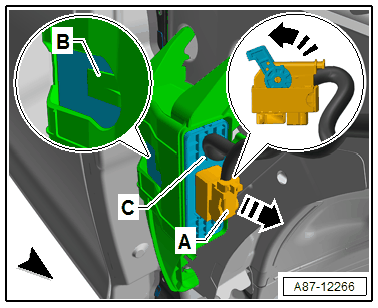

-- Disengage and remove the connector -A-.

Courtesy of AUDI OF AMERICA, LLC

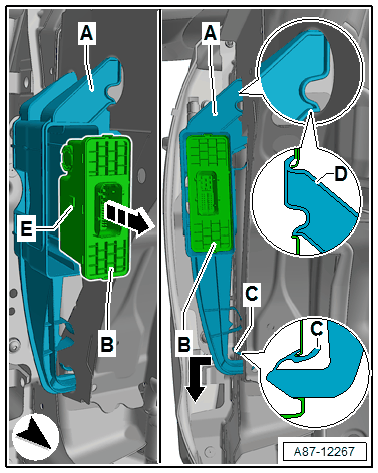

-- Release the locking mechanism -C- of the bracket -A-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pivot the bracket -A- (with the control module -B-) toward the fender, detach it downward from the mount -D- and remove -arrow-.
