Rear Peripheral Camera -R246-, Removing And Installing, Sedan: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING / REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

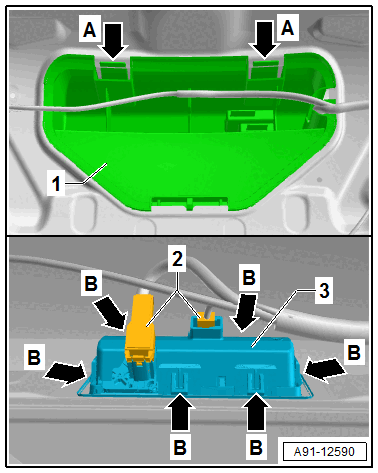

-- Release the retainers -arrows A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the anti-theft protection -1- from the rear lid.

-- Release and disconnect the connectors -2-.

-- Release the catches -arrows B-.

-- Remove the handle button -3- from the rear lid.
