Information Electronics Control Module 1 -J794-, Removing And Installing: Removing

-- Remove any CD/DVDs and SD/SIM cards from the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .

The wires to the Information Electronics Control Module 1 -J794- are very short. For this reason the bracket must be removed first. With the removal of the glove compartment two bolts for the bracket are loosened.

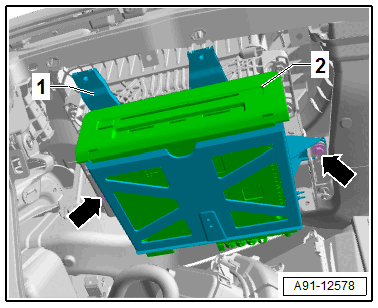

-- Remove the bolts -arrows- and fold the bracket -1- downward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -2-.

-- Insert the :VAS6223/9  -1- onto the MOST Bus connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the two clips from the Radio Removal Tool :T10057  into the release slots on the Information Electronics Control Module 1 -J794-.

• The points at the grip eyelets of the Radio Removal Tool :T10057  face outward.
• The clamps from the Radio Removal Tool :T10057  must engage.

-- Remove the Information Electronics Control Module 1 -J794- from the bracket at the :T10057  grip eyes.

-- Press the release tabs on the Information Electronics Control Module 1 -J794- and remove the :T10057  .
