Multimedia Button Module -E817-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

The Multimedia Button Module -E817- is clipped in with the center console insert trim (quantity 4).

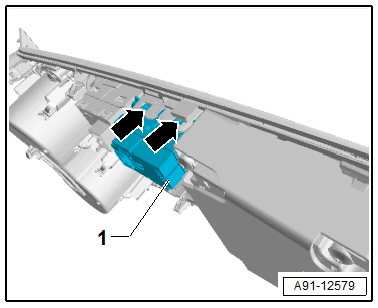

-- Unclip the Multimedia Button Module -E817- -1- -arrows- and push downward out of the center console insert trim.
