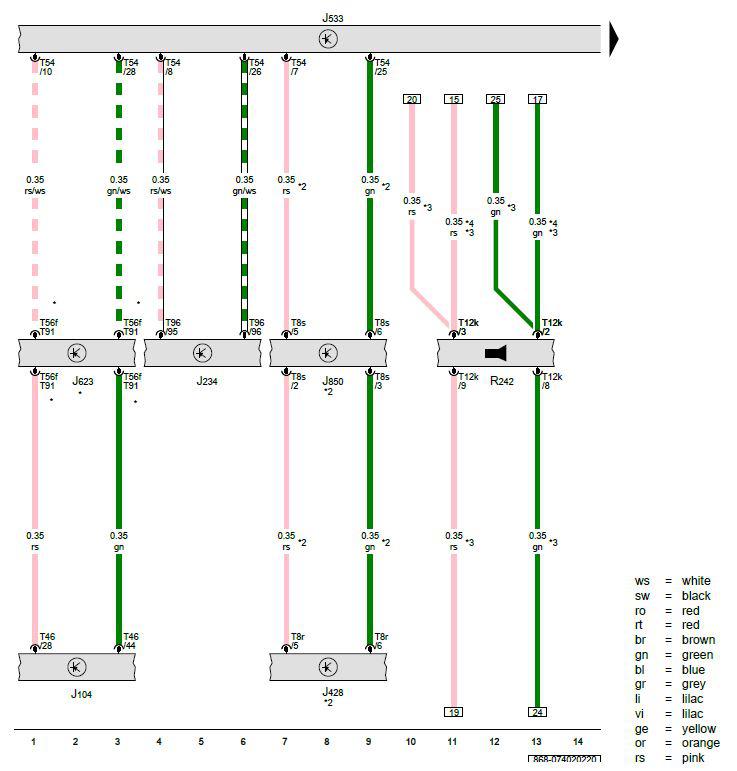

ABS Control Module, Airbag Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface, Engine/Motor Control Module, Control Module 2 for Adaptive Cruise Control, Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J234 -  Airbag Control Module

J428 -  Control Module for Adaptive Cruise Control

J533 -  Data Bus on Board Diagnostic Interface

J623 -  Engine/Motor Control Module

J850 -  Control Module 2 for Adaptive Cruise Control

R242 -  Driver Assistance Systems Front Camera

T8r -  8-Pin Connector, Black

T8s -  8-Pin Connector, Black

T12k -  12-Pin Connector, Black

T46 -  46-Pin Connector, Black

T54 -  54-Pin Connector, Black

T56f -  56-Pin Connector, Black

T96 -  96-Pin Connector, Black

* -  Refer to Applicable Engine Wiring Diagram

*2 -  For Vehicles with Adaptive Cruise Control (ACC)

*3 -  For Driver Assistance System

*4 -  For Vehicles with Electronic Damping
