Coolant Fan Control Module 2 -J671- Connector Views

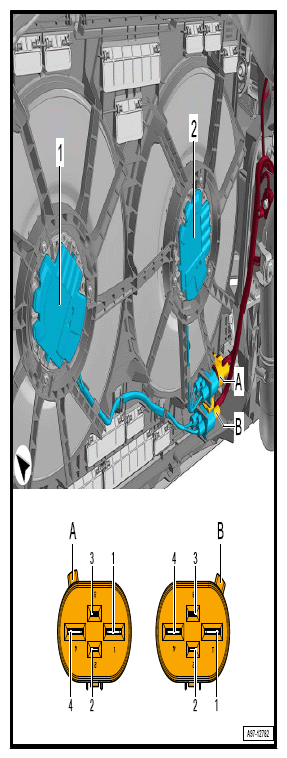

4-Pin Connector -T4BK- (A)/4-Pin Connector -T4BI- (B)

G12767180Courtesy of AUDI OF AMERICA, LLC
T4bk (A) Designation
1 Terminal 30
2 Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1
3 Engine Control Module (ECM) J623
4 Terminal 31
T4bi (B) Designation
1 Terminal 30
2 Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1
3 Engine Control Module (ECM) J623
4 Terminal 31
