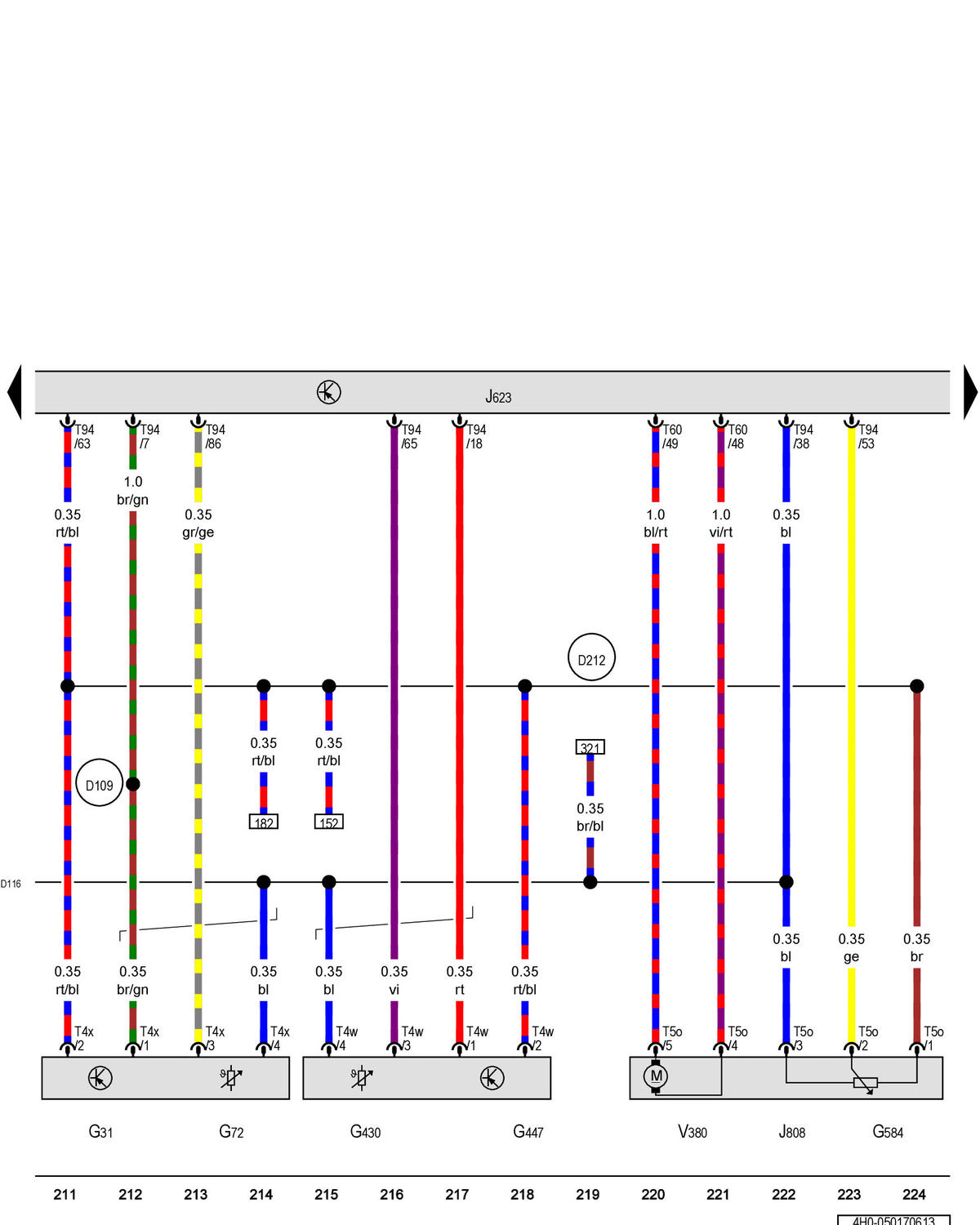

Charge Air Pressure Sensor, Intake Manifold Temperature Sensor, Engine Control Module, Control Valve Control Unit: Notes

GWW4H0-050170613Courtesy of AUDI OF AMERICA, LLC
