Overview - Steering Column, Power

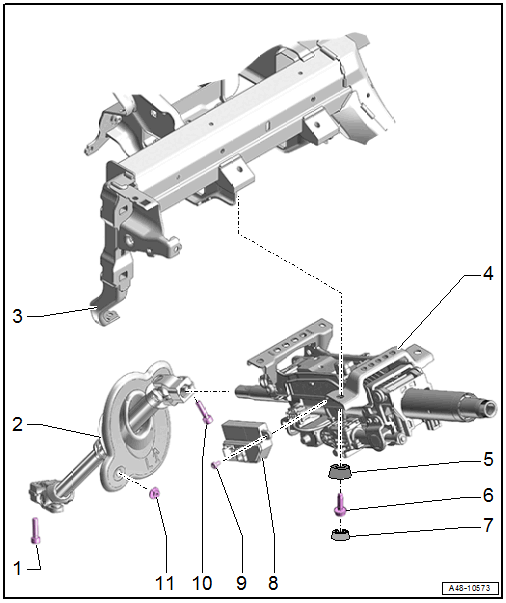

Fig 1: Exploded View Of Steering Column, Power

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm + 90°
- Replace after removing.
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
Steering Intermediate Shaft
- Removing and installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
Instrument Panel Crossmember
Steering Column
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Check for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
Anti-Theft Protection Component Lower Section
- Equipment version with manual transmission
Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
Anti-Theft Protection Component Upper Section
- Equipment version with manual transmission
Power Adjustable Steering Column Control Module -J866-
- Removing and installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Bolt
- 20 Nm + 90°
- Replace after removing.
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
Nut
- 4.5 Nm
