Emergency Call Module Antenna -R263-, Removing And Installing, Sedan, With Tinted Glass (4GR/4GY): Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Disconnect the connector.

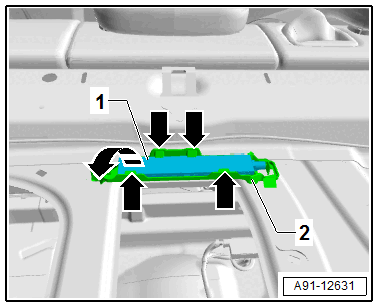

GWWA91-12631Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the Emergency Call Module Antenna -R263- -1- from the bracket -2- in the direction of -arrow-.
