Subwoofer -R211-, Removing And Installing, Sedan: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

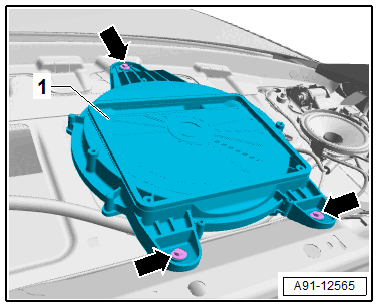

-- Release and disconnect the connector from the Subwoofer -R211- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- from the Subwoofer -R211- -1-.

-- Remove the Subwoofer -R211- -1- upward.
