Mounting Bracket, Removing And Installing: Installing
Install in reverse order of removal and Note The Following:

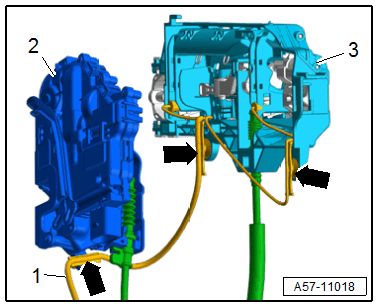

-- Equipped on some models: install the wiring harness -1- for the exterior door handle touch sensor/exterior door handle illumination on the mounting bracket -3- and on the door lock -2-. Pay attention to the wire routing -arrows-.
TIP:
If the wiring harness is not routed correctly, there may be noises when opening and closing the door window, because the door window grazes the wiring harness.
