ENGINE, SECURING TO Engine and Transmission Holder: VAS6095A
WARNING: This page is about a different car, the 2019 Audi A4 allroad, 2018 Audi A4 allroad, 2017 Audi A4 allroad, 2017 Audi A4 Quattro, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Sling: 2024A
- Holding Fixture: VW540
- Shop Crane: VAS6100
- Engine and Transmission Holder: VAS6095A
Procedure

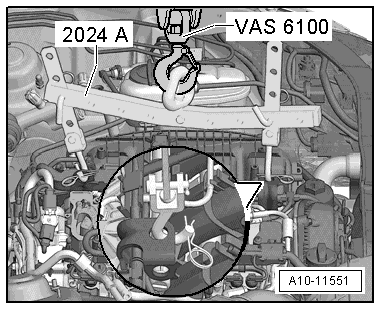

- Engine engaged with the : 2024A on the : VAS6100
- To be aligned to the center of gravity of the assembly, the rails with holes of the lifting hooks must be inserted as shown.
CAUTION:
There is a risk of injury from the lifted engine falling.
Parts of the body could be crushed.
- Secure the mounting hooks and pins on the lifting tackle with a securing pin.
-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

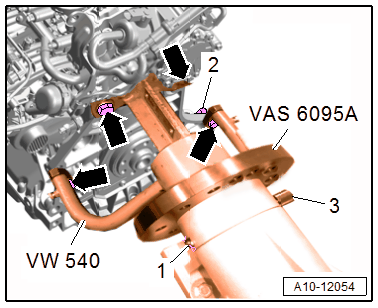

-- Tighten the : VW540 on the transmission side as shown on the engine with the bolts -arrows- and nut -2-.
-- Secure the : VW540 with mounting pin -3- and cotter pin -1- on the : VAS6095A .
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .
