Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

Depending on the model, preliminary work may be required. Refer to IGNITION SYSTEM .

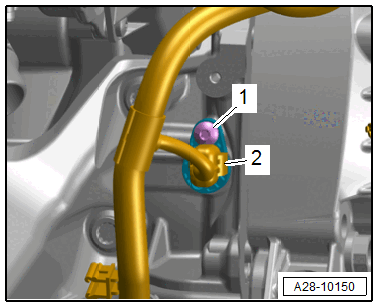

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and the Engine Speed Sensor -G28- -2-.
