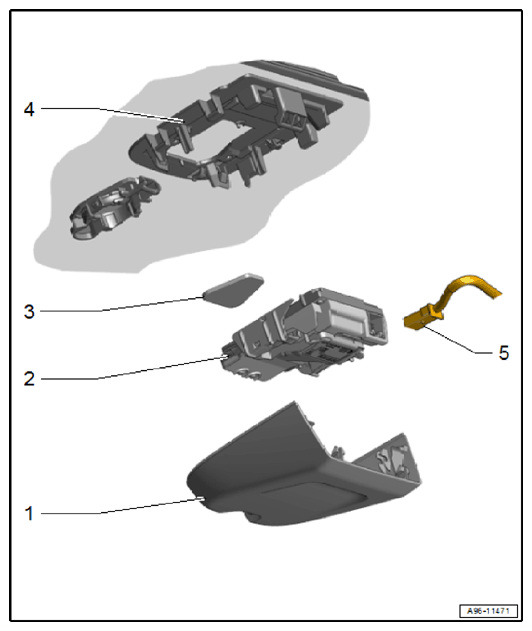

5.1 Component Location Overview - Driver Assistance Systems Front Camera
- Cover
- Driver Assistance Systems Front Camera - R242-
- Removing and installing. Refer to 5.2.1 Driver Assistance Systems Front Camera, Removing and Installing
- Replacing. Refer to 5.2.2 Driver Assistance Systems Front Camera, Replacing
- Silicone Pad
- Replace after removing.
- Retaining Plate
- Cannot be separated from the windshield
- Connector
