Multimedia Display Unit 3 Bracket -R315- /Multimedia Display Unit 4 Bracket -R316-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the Multimedia Display Unit 4 -Y32-. Refer to Multimedia Display Unit 3 -Y31- /Multimedia Display Unit 4 -Y32-, REMOVING AND INSTALLING .

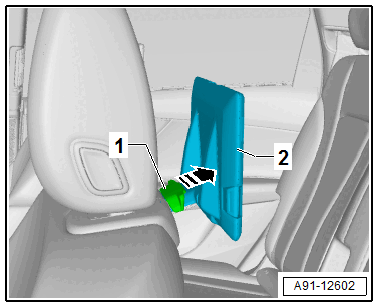

-- Release the catch -1- on the Multimedia Display Unit 4 Bracket - R316- -2- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Multimedia Display Unit 4 Bracket -R316- -2- toward the rear from the left front seat backrest.
