A4 Titanium
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Ignition System
>>
Wiring Diagram [DBPA]
>>
Wiring Diagram(S)
>>

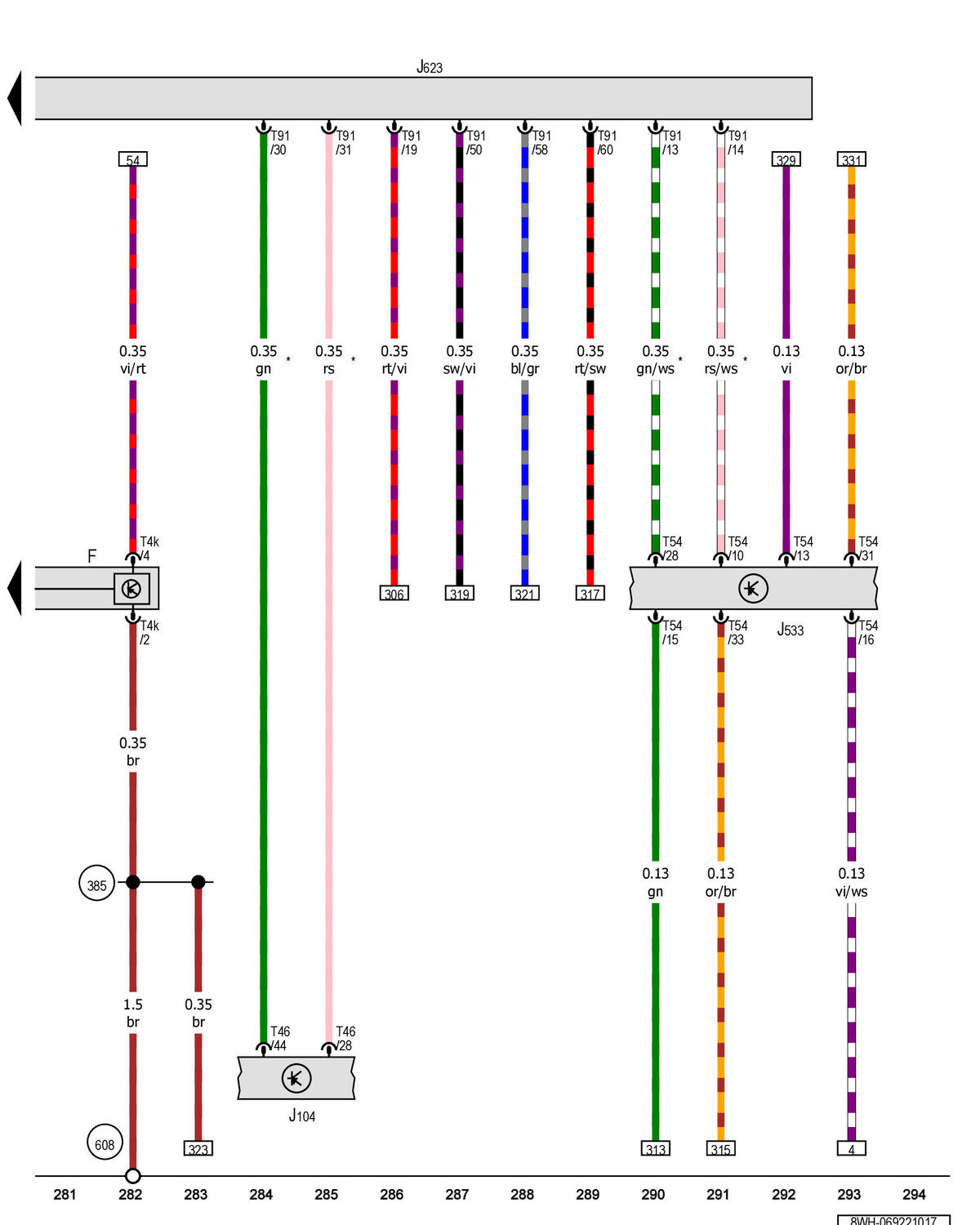

Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes
