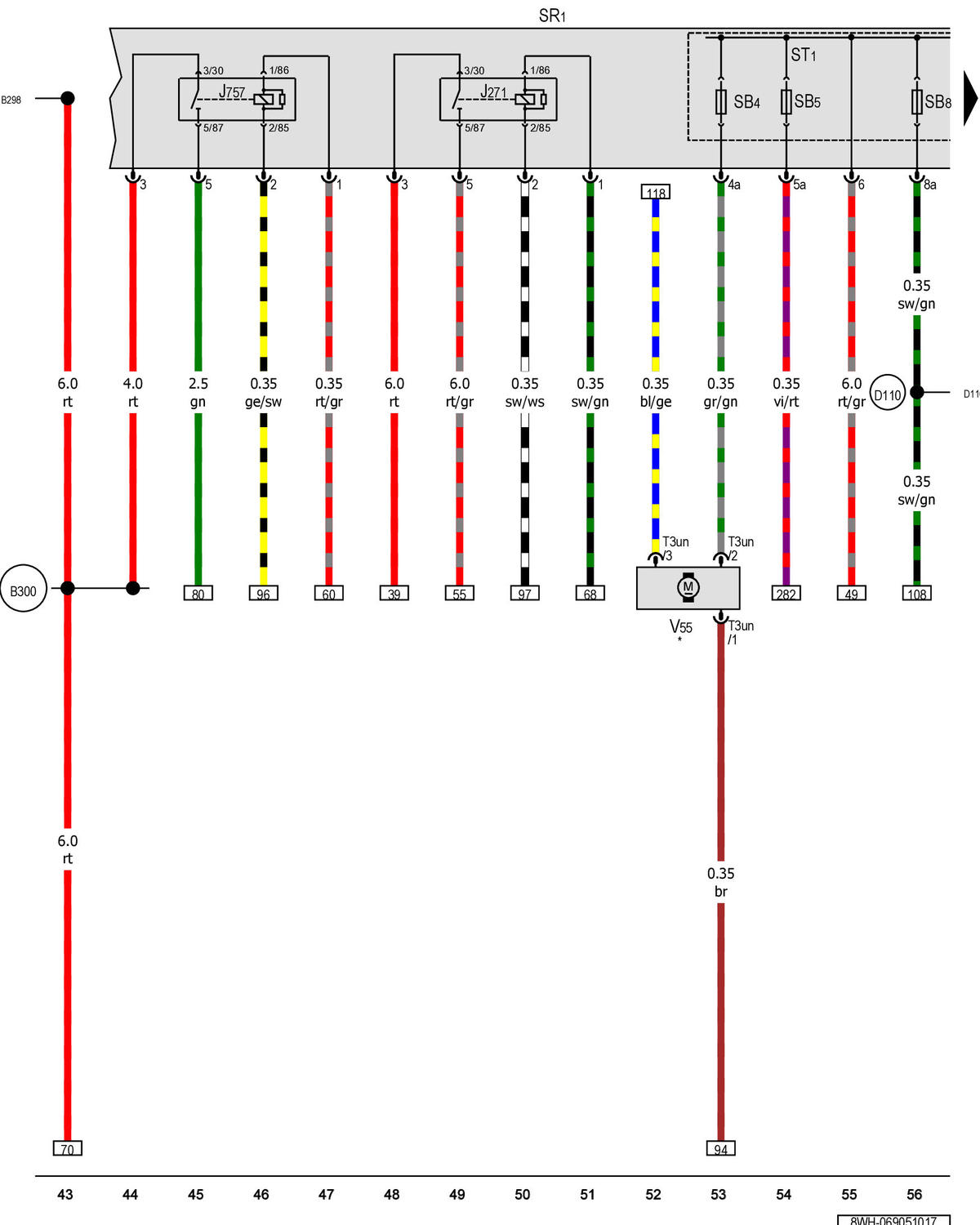

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay, Relay And Fuse Panel 1, RECIRCULATION Pump: Notes

GWW8WH-069051017
