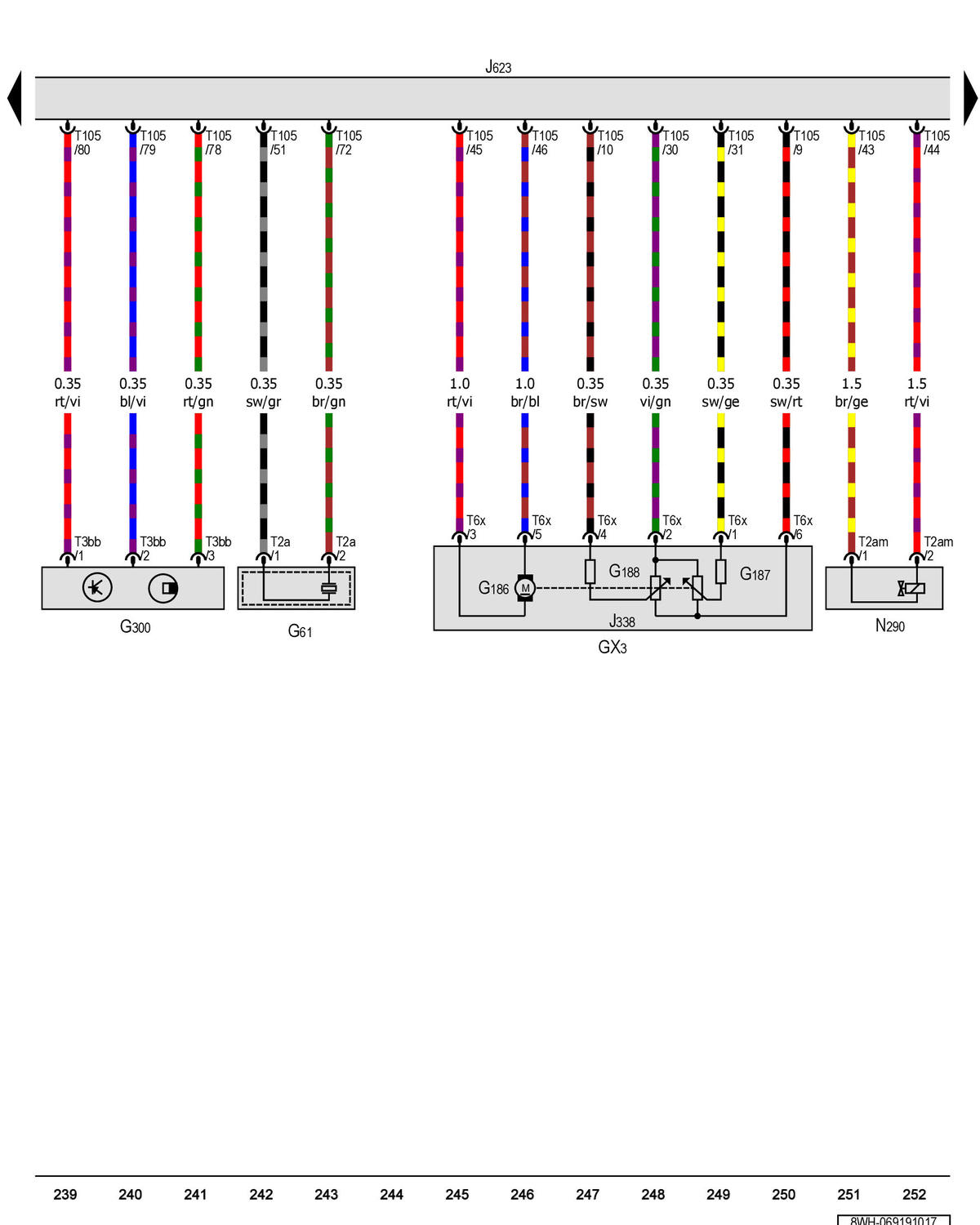

Throttle Valve Control Module, Knock Sensor 1, Camshaft Position Sensor 3, Engine/Motor Control Module, Fuel Metering Valve: Notes

GWW8WH-069191017
