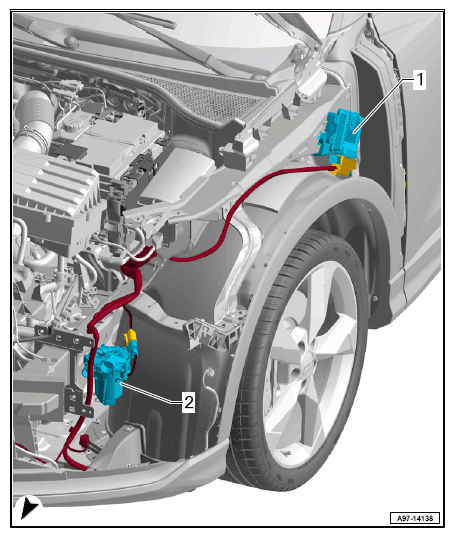

Front, View From Left, Part 2

  1. Transmission Control Module (TCM) -J217-
  2. Secondary Air Injection (AIR) Pump Motor -V101-
G12776214Courtesy of AUDI OF AMERICA, LLC
