Instrument Cluster With Instrument Cluster Control Module -J285-, Removing And Installing, Low Instrument Cluster: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2020 Audi S3, 2020 Audi RS 3, 2020 Audi A3 Quattro, 2020 Audi A3, and 2019 Audi S3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Switch off the ignition.

-- Vehicle equipment version with mechanical ignition switch: Remove the key.

-- Vehicle equipment version with electronic ignition switch: Remove the key from the vehicle.

-- Remove the upper steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

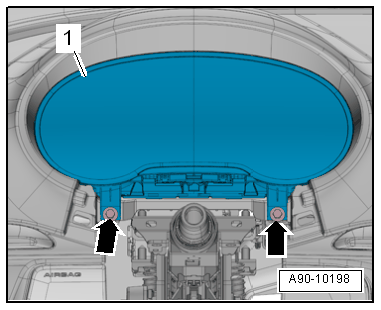

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the instrument cluster -1- out just far enough until it is touching the steering wheel.

-- Disconnect the connector.

-- Press the retaining tab -1- to disconnect the connector, turn the retaining bracket in the direction of -arrow- and remove the connector.

Fig 1: Catch & Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument cluster between the steering wheel and the instrument panel.
