Exhaust Gas Temperature Sensor, Removing And Installing, AWD Vehicles: Installing
WARNING: This page is about a different car, the 2020 Audi A3, 2019 Audi A3, and 2018 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Protect the exhaust gas temperature sensor against knocks and impacts. A dropped exhaust gas temperature sensor may not be used again.

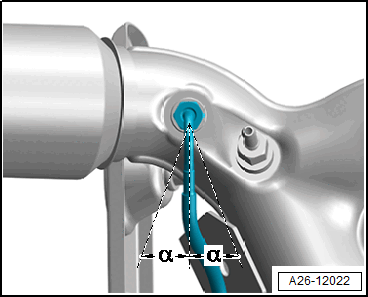

-- Bring the Pre-Particulate Filter Temperature Sensor -G506- into its installation position:
- Angle -α- = maximum 15°.

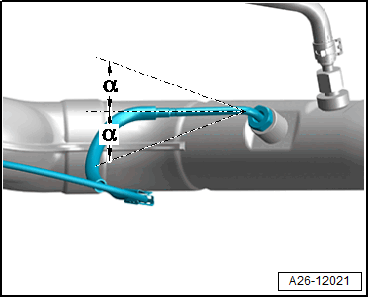

-- Bring the Post-Particulate Filter Temperature Sensor -G527- into its installation position:
- Angle -α- = maximum 15°.
