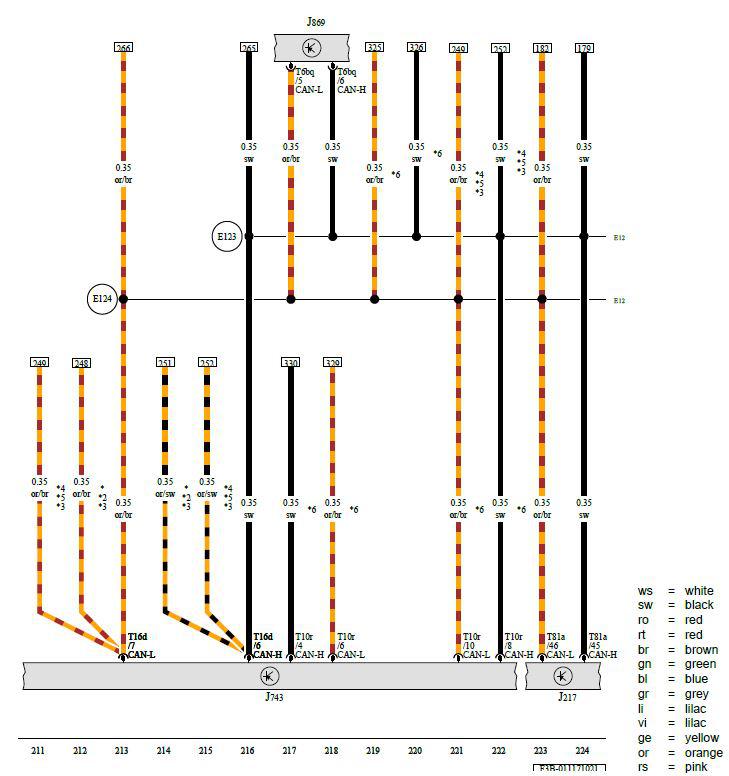

Transmission Control Module, Structure-Borne Sound Control Module

Courtesy of AUDI OF AMERICA, LLC

J217 -  Transmission Control Module

J743 -  Dual-Clutch Transmission Mechatronic

J869 -  Structure-Borne Sound Control Module

T6bq -  6-Pin Connector, Black

T10r -  10-Pin Connector, Black

T16d -  16-Pin Connector, Black

T81a -  81-Pin Connector, Black

E123 -  CAN Bus Drive High Connection 1 (in Engine Wiring Harness)

E124 -  CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)

* -  For Emissions Standard Euro 6 Plus

*2 -  For Emissions Standard Euro 4 without European OBD, without Hardware Change

*3 -  For Vehicles with 2.5L Gasoline Engine

*4 -  For Emissions Standard Euro 6 DG

*5 -  For Emissions Standard Euro 6 AP

*6 -  For Vehicles with Hybrid Drive
