Transmission Tightening Specifications

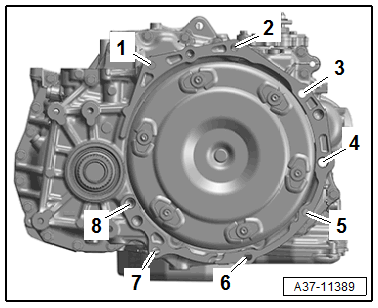

GWWA37-11389Courtesy of AUDI OF AMERICA, LLC
Item Bolt Nm
1 and 2 M12 x 50 80. Refer to (1).
3 and 4 M12 x 205 80
5, 6 and 7 M10 x 45 40
8 M12 x 60 80
(1) When using the : T10179  or :T10509  , use a different tightening specification: 65 Nm.
