Exhaust Gas Temperature Sensor, Removing And Installing: Installing

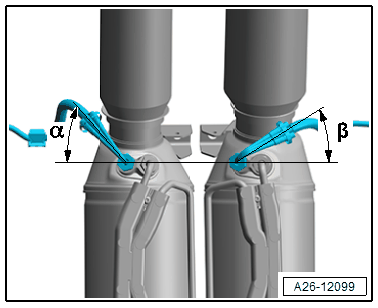

GWWA26-12099Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

-- Bring the exhaust gas temperature sensor before the particulate filter into its installation position:

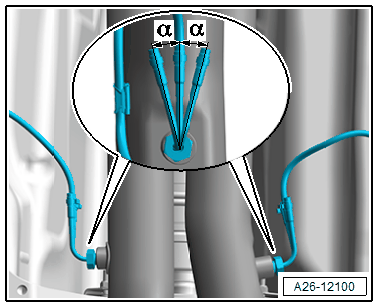

-- Bring the exhaust gas temperature sensor after the particulate filter into its installation position:

GWWA26-12100Courtesy of AUDI OF AMERICA, LLC
