BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, RS3 THROUGH MY 2016: Removing

-- Remove the distance regulation control module. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

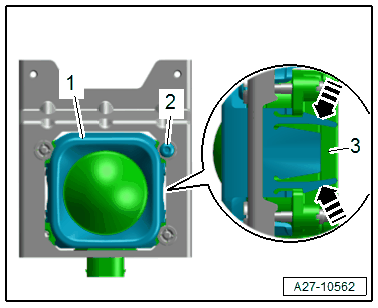

-- Remove the drain plug -2-.

-- Open the tabs in direction of -arrows-.

-- Remove the cover -1- from the Distance Regulation Control Module -J428- -3-.

-- Place the control module on a soft and clean surface.

Courtesy of AUDI OF AMERICA, LLC

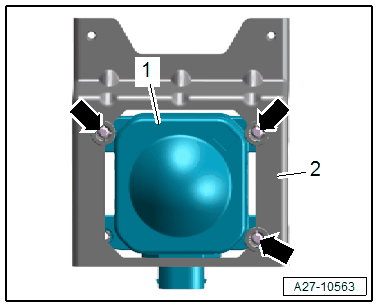

-- Remove the stud bolts -arrows- alternating.

-- Remove the retaining plate -2- from the Control Module for Adaptive Cruise Control -J428- -1-.
