Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2019 Audi A4 allroad, 2018 Audi A4 allroad, 2017 Audi A4 allroad, 2017 Audi A4 Quattro, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not pull sharply on the engine cover or pull it to one side.

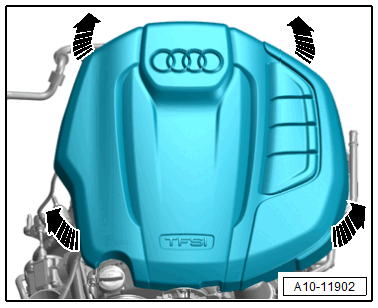

Fig 1: Engine Cover 2.0L TFSI

Courtesy of AUDI OF AMERICA, LLC

Tip:

There are different versions depending on models and version.
