Close Range Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

The Close Range Communication Control Module 2 -J1170- is clipped into the center console insert.

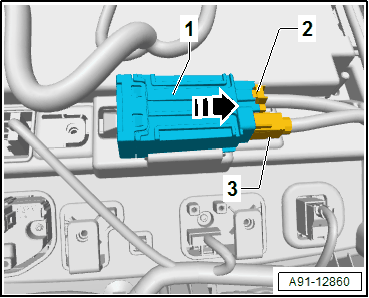

-- Remove the Close Range Communication Control Module 2 -J1170- -1- from the center console insert in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -2 and 3-.
