Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING: Removing

• Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN REAR SECTION OF VEHICLE .

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -4-.

Courtesy of AUDI OF AMERICA, LLC

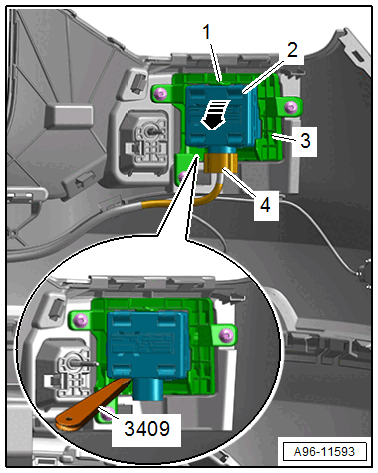

-- Release the catch -1- and tilt the control module -2- out in direction of -arrow-.

-- Pry out and remove the control module from the lower mount -3- with the : 3409  .
