Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING: Removing

-- Remove the Driver Exterior Rearview Mirror Turn Signal Bulb -L131- /Front Passenger Exterior Rearview Mirror Turn Signal Bulb -L132-. Refer to DRIVER EXTERIOR REARVIEW MIRROR TURN SIGNAL BULB -L131- /FRONT PASSENGER EXTERIOR REARVIEW MIRROR TURN SIGNAL BULB -L132-, REMOVING AND INSTALLING .

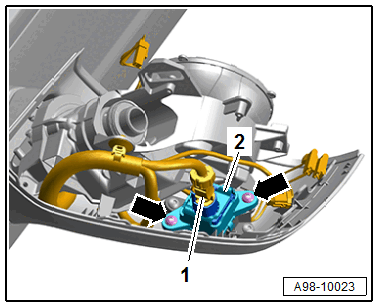

-- Release and disconnect the connector -1-.

GWWA98-10023Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the peripheral camera -2- with the bracket from the exterior rearview mirror.

-- Remove the peripheral camera from the bracket.
