Overview - Assistance Systems Front Camera, Version 2, MFK3

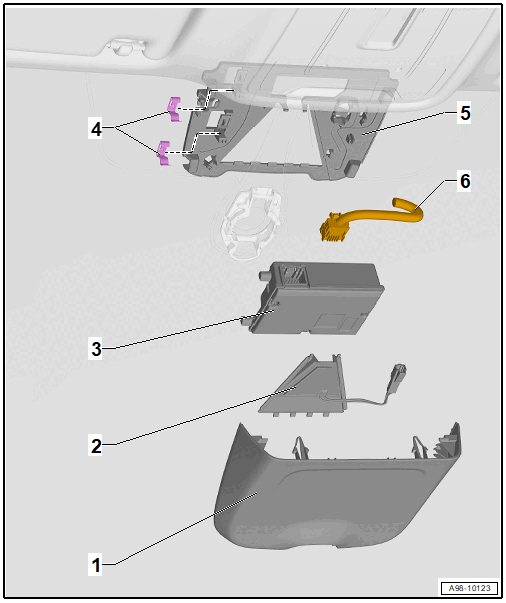

Fig 1: Driver Assistance Systems Front Camera (Version 2) Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cover Plate
2. Lens
   • With Window Defogger for Front Sensor System -Z113- for the Driver Assistance Systems Front Camera - R242-
   • Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING, VERSION 2, MFK3 .
3. Driver Assistance Systems Front Camera -R242-
   • Removing and Installing. Refer to Driver Assistance Systems Front Camera -R242-, REMOVING AND INSTALLING, VERSION 2, MFK3 .
   • Conditions when the driver assistance systems front camera must be calibrated. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
4. Clip
   • Always replace if removed
   • Quantity: 2
5. Retaining Plate
   • Cannot be separated from the windshield
6. Connector
