Digital Sound System Control Module -J525- BRACKET, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Digital Sound System Control Module -J525-. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING, 9VS .

-- If necessary, fold up the carpet and floor insulation at the center tunnel and floor panel.

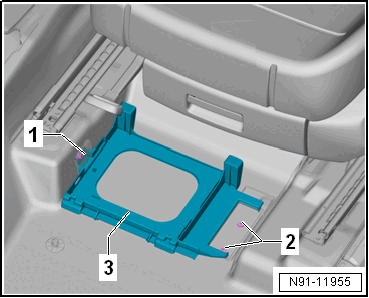

-- Remove the bolt -1- on the center tunnel.

-- Remove the nuts -2- on the floor.

-- Remove the bracket for the Digital Sound System Control Module -J525- -3-.
