Component Location Overview - Inner Control Modules

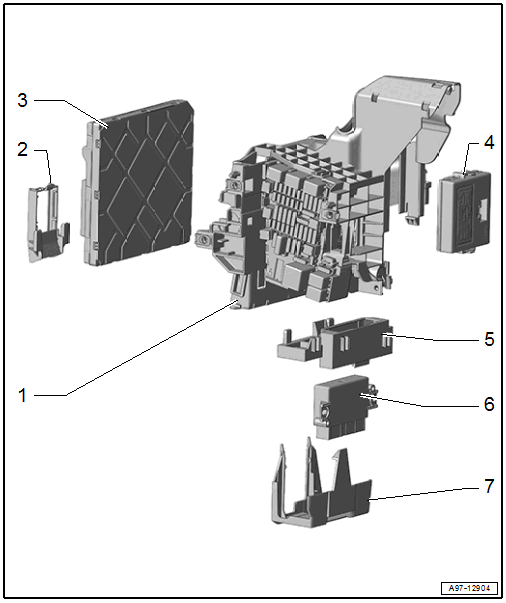

Fig 1: Exploded View Of Inner Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • For vehicle electrical system control module
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - A-PILLAR RELAY PANEL AND INSTRUMENT PANEL FUSE PANEL .
2. Guide
   • For the center connector
3. Vehicle Electrical System Control Module -J519-
   • Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
4. Data Bus on Board Diagnostic Interface -J533-
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
5. Bracket
   • For the control module
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOX .
6. Control Module
   • Equipment version with parking aid: Parking Aid Control Module -J446-
   • Equipment version with parallel parking assist: Parallel Parking Assistance Control Module -J791-
   • Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING .
7. Cover
   • For the control module
