Component Location Overview - Outer Control Modules

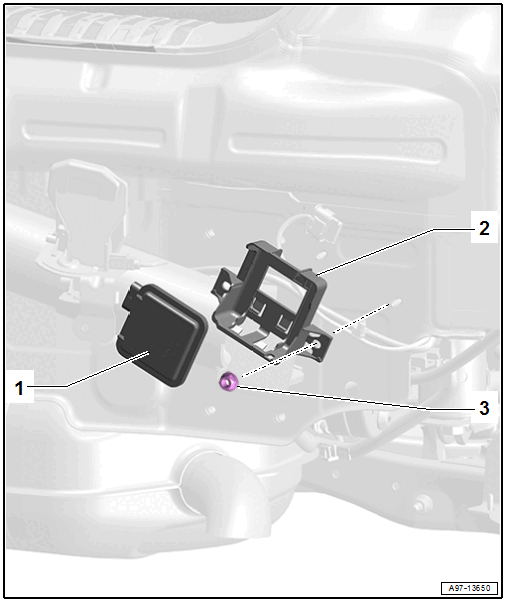

Fig 1: Exploded View Of Outer Control Modules

Courtesy of AUDI OF AMERICA, LLC

1. Garage Door Opener Control Module -J530-
   • Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
2. Bracket
   • For the Garage Door Opener Control Module -J530-
3. Nut
   • 3 Nm
   • Quantity: 2
